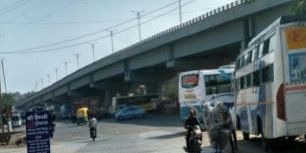

CONSTRUCTION OF ROAD FLYOVER AT TEEN IMLI SQUARE (RING ROAD) INDORE DISTRICT INDORE (M.P)
Client: Public Works Department, Government of Madhya Pradesh
Location: Indore, Madhya Pradesh

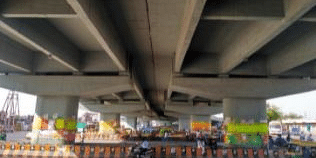

This is a post-tensioned concrete structure where post-tensioning of strand wires is carried to achieve the prescribed elongation. This is a 6 lines bridge. The length of the bridge is 627 m. The superstructure is an RCC T beam girder in M30, and solid slab & PSC box girdering M-35. The number of spans is:
(i) 2 x 10 - 30 mc/c
(ii) 2 x 2 - 22.5 m c/c
(iii) 2 x 2 60 m
Use of high tensile steel wire including stressing etc was done. The approaches of this bridge have been constructed using battery of RCC box and reinforced earth wall.
(i) 2 x 10 - 30 mc/c
(ii) 2 x 2 - 22.5 m c/c
(iii) 2 x 2 60 m
Use of high tensile steel wire including stressing etc was done. The approaches of this bridge have been constructed using battery of RCC box and reinforced earth wall.
