CONSTRUCTION OF ADDITIONAL 2 LANE RAILWAY OVER BRIDGE AT L.C.242, NEAR BANGANGA, INDORE DISTRICT, MADHYA PRADESH
Client: Public Works Department, Government of Madhya Pradesh
Location: Banganga, Indore (M.P)
Client: Public Works Department, Government of Madhya Pradesh
Location: Banganga, Indore (M.P)
-pvt-ltd/Capturejhgf_exzxhl)
-pvt-ltd/jhgfdfghjk_yzb1ch)
-pvt-ltd/Capture_yr6cbi)

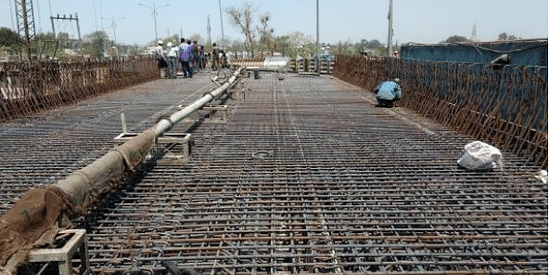

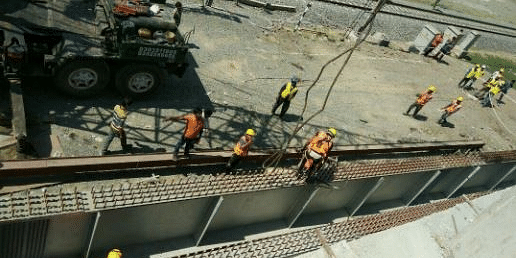

This is an RCC-T beam bridge consisting of an RCC-T beam girder in 30 m, and two steel girder (31.90 m & 19.90 m). The length of the bridge is 759.15m. Details of the number of spans are as follows:
(i) 14 nos. - 23.60 m
(ii) 1 No. - 22.40 m
(iii) 1 No.- 20.00 m
(iv) 1 No. - 10.5 m
(v) 1 No.- 6.5 m
